DC drive system
Siemens DC drive solutions allow you to significantly reduce technology costs by delivering peak performance and integrated intelligence for maximum availability – such as the parallel switching interface for redundant operations, flexible expandability, quick and easy component exchange, easy commissioning and parameterization, and integration in a range of automation schemes.
Many of the same tools and components so successful in SINAMICS AC technology are now made available for SINAMICS DC drives. This series of drives sets itself apart as a scalable drive system – both for basic as well as demanding and sophisticated applications. For the standard closed-loop control, the DC converter is equipped with a standard control unit for converters (standard CUD). For applications demanding a higher computational performance and interfaces, the system can be expanded by an advanced CUD.
SINAMICS DCM features
- PROFIBUS, PROFINET, and EtherNet/IP communications options
- Single-phase connection is possible for units ≤ 125 A
- Variance of control units
- Field power supply in-line with requirements in the field
- 24 V DC electronics power supply
- Power unit is insulated with respect to ground
- Free function blocks are integrated in the standard version and Drive Control Chart
- Functionality can be expanded using SINAMICS components
- Coated boards and nickel-plated copper busbars (optional)
- Wide temperature range

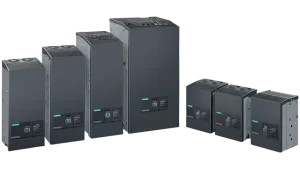

SINAMICS DCM drives formats
The SINAMICS DC Master series combines the open-loop and closed-loop control and power units in one device and therefore offer a compact, space-saving design. The AOP30 Advanced Operator Panel and the BOP20 Basic Operator Panel are available for commissioning and local operator control. The interfaces of the CUD and the number of digital inputs and outputs can be supplemented using additional modules – such as the TM15 and TM31 Terminal Modules.
| Operation | 2Q and 4Q |
| Power range | 5 – 40,000 Hp (6.3 kW – 30 MW) |
| Rated DC current | 15 – 3,000 A (single converter) |
| Rated supply voltage | 3-ph. 85 to 950 V AC |
| Rated field DC current | 3 – 40 A (optional: 85 A) |
| Rated frequency | 45 – 65 Hz |
| Degree of protection | IP00 |
| Standards | IEC, EN, DIN, VDE, UL, cULus, NEMA, UL 508 C, GOST |
SINAMICS DC MASTER Control Module offers the optimum solution when retrofitting and modernizing existing DC drives. Unlike the SINAMICS DC MASTER Drive, which comprises open-loop / closed-loop control and power unit, the Control Module is used solely as a component of modernization. There are many plants and systems with DC technology, which in their present condition can no longer be coupled with state-of-the-art automation systems, like Totally Integrated Automation. In retrofitting or upgrading, the existing motor, mechanical system and power unit may be retained and only the control unit is replaced by the Control Module. This allows for a state-of-the-art DC drive at an extremely favorable price with the full functional scope of the well-proven, fully digitized units from the SINAMICS DC MASTER series.
The flexible design, as well as the available pre-assembled cable harnesses and mounting components, simplify integration into existing plants and systems. Adaptation to the configuration and to the power data of the existing components is realized through simple parameterization. By using an Advanced Operator Panel AOP30, a favorably priced alternative is obtained to control cabinet measuring instruments. Using a compact space-saving design, the SINAMICS DC MASTER Control Module, which includes a field power unit, may be split depth-wise to allow even better utilization of the mounting/installation space.
Connecting rated supply voltages of the armature circuit, power unit | 3 AC 50 / 125 / 250 / 575 / 1000 V |
Rated supply voltage for electronics | DC 24 V (DC 18 to 30 V); In = 5 A |
Rated field supply voltage * | 2 AC 480 V (+10 / -20 %) |
Rated frequency | 45 to 65 Hz |
Rated DC field voltage | max. 390 V |
Rated DC field current | 40 A |
- The Standard base drive range includes base drives that are rated from 15 A to 1200 A DC continuous current
- The Extended base drive range includes base drives that are rated from 1500 A to 2800 A DC continuous current
| 15 – 1,200 A DC | 1,500 – 2,800 A DC | |
| Supply voltages and output ranges | 240V / 480V 3-phase AC, +10/-20% : 3 to 800 Hp < 125A base drives can be run at single-phase AC with 30% de-rate | 575V 3-phase AC: +10/-20% : 1,250 to 2,250 Hp 690V 3-phase AC: +10/-20% : 1,250 to 2,500 Hp 830V 3-phase AC: +10/-20% : 1,750 to 2000 Hp 950V 3-phase AC: +15/-20% : 2,500 Hp |
| Supply systems | Grounded or ungrounded | Grounded or ungrounded |
| Rated line frequency | 45 – 65 Hz | 45 – 65 Hz |
| Output voltage | 0 – 500V DC | 575V 3-phase AC: 0 – 600V DC 690V 3-phase AC: 0 – 725V DC 830V 3-phase AC: 0 – 875V DC 950V 3-phase AC: 0 – 1000V DC |
| Overload possibility | Max. 1.8x rated DC current | Max. 1.8x rated DC current |
| Short circuit current rating | SCCR per UL508A: 65 kA | SCCR per UL508A: 65 kA |
| Type of enclosure and color | IP00 | IP00 |
| Type of cooling | Self–ventilated / forced-air ventilation | Forced-air ventilation |
| Noise level LpA (1 m) | 70 – 74.4 dB(A) at 60 Hz line frequency | 75.6 dB(A) at 60 Hz line frequency |
| UL listing | UL and cUL (508A), drive components are listed UL508C | UL and cUL (508A), drive components are listed UL508C |
| Ambient temperature | 32 to 113˚F (0 to +45˚C) | 32 to 104˚F (0 to +40˚C) |
| Relative humidity (non-condensing) | 5 – 95% | 5 – 95% |
| Installation altitude | Up to 3,300 ft (1,000 m) above sea level without de-rating | Up to 3,300 ft (1,000 m) above sea level without de-rating |
- Free Function Blocks
can be optimally adapted to an application’s requirements for drive-related open-loop and closed-loop control functions (e.g. winder, sectional drive, load sharing, master-slave, cross-cutter, etc.) in a decentralized manner that relieves the workload on higher level controls - Flexible expandability in functionality and performance
The extensive product range and the many options allow the SINAMICS DCM to be optimally adapted to customer requirements – both technically and economically. Different customer requirements relating to the computational performance and speed can be precisely fulfilled with the ability to select between a Standard CUD, an Advanced CUD – or a combination of bothwide
- Simple commissioning and parameterization
Menu-assisted at the AOP30 Advanced Operator Panel with graphics-capable LCD display and plain text display or PC-supported using the STARTER commissioning tool - Simple integration into automation solutions
Comprehensive range of communication interfaces: PROFIBUS, PROFINET, EtherNet/IP,™ standard Ethernet TCP/IP - Reduced training time and expense
The maximum number of identical components is reduced as a result of the extensive product range of SINAMICS DC MASTER. The seamless and integrated series of SINAMICS DC MASTER Units encompasses a wide current and voltage range. The series of drives is designed to be connected to three-phase line supplies
- Reliability and robustness
The highest degree to ensure maximum production - Highest dynamic performance
Increased productivity and finished product quality - Plant or system availability increased by being able to quickly and simply exchange components
Components have been designed so that they can be quickly and easily replaced. The available spare parts are assigned to the serial number of the drive unit - Global support and availability
Large network of qualified system integrators, distributors and Siemens professionals for consultation, design, commissioning, service and support world
